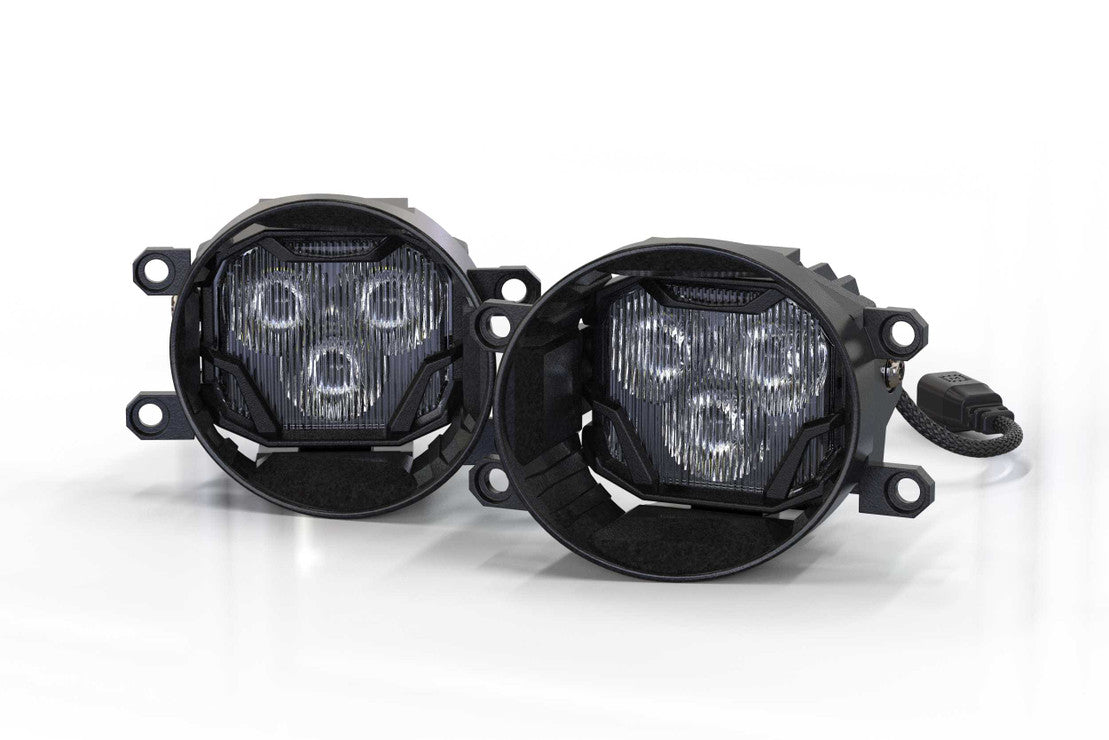

Morimoto 4Banger LED Fog Lights | Toyota 4Runner (2014-2024)
SAE COMPLIANT FOG LIGHTS: Morimoto 4Banger NCS SAE Wide Beam surpasses the competition and abides by latest SAE F regulations, setting a new standard for fog light brightness. Even better, the system comes with custom-designed brackets for your Toyota 4Runner (2014-2024), creating a secure, legal fog light setup.

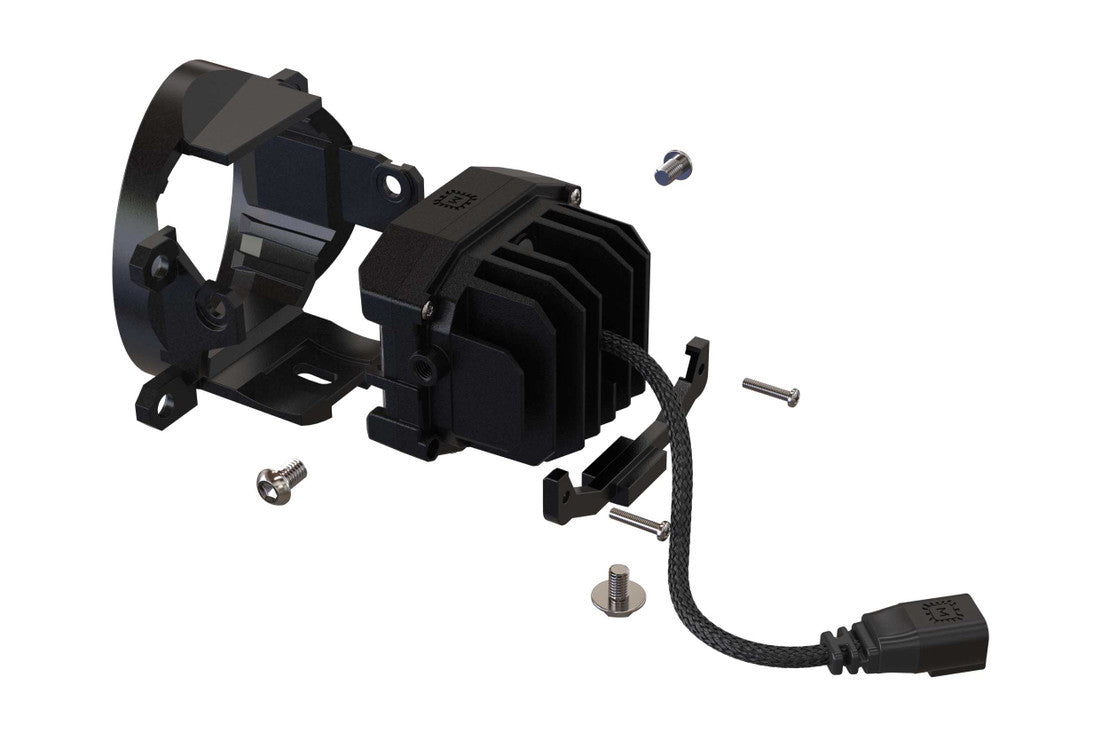

ENGINEERED SOLUTION: Thanks to its compact profile, the 4Banger LED Fog Light upgrade provides a powerful improvement that fits properly and looks great. Many other LED adapter kits require the use of large, clunky brackets, yet Morimoto engineers spent hundreds of hours optimizing the 4Banger brackets. The end product is a carefully crafted set of Toyota fog light brackets, perfect for any 4Runner (2014-2024) upgrade.

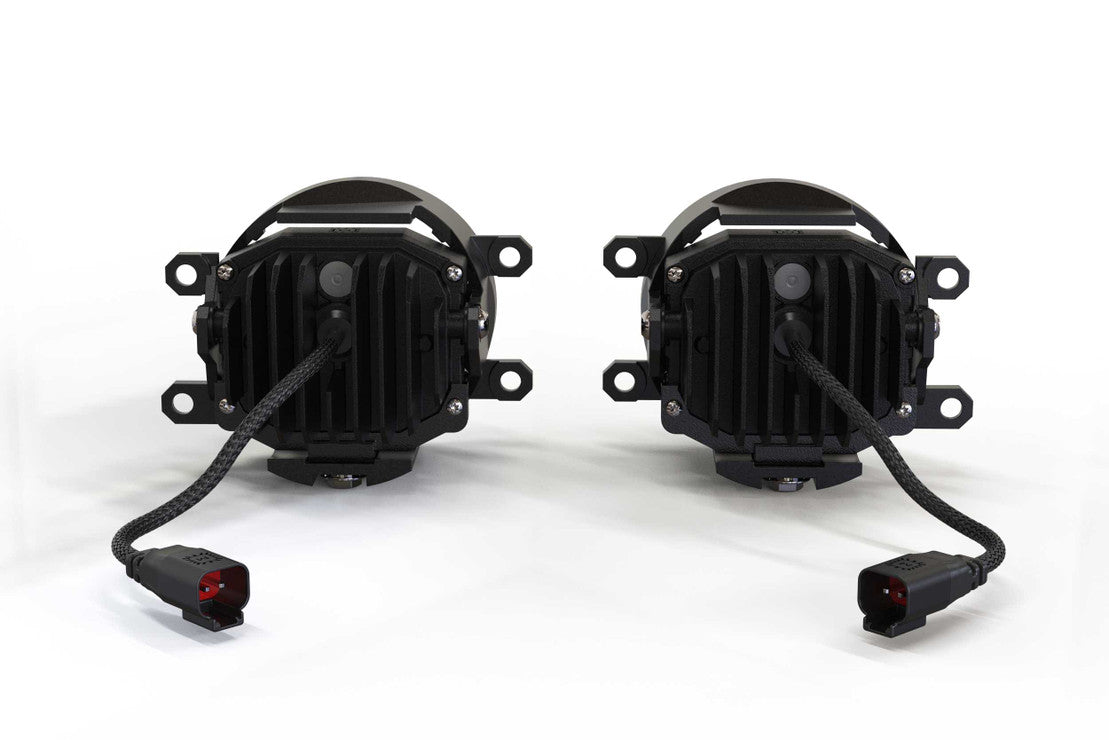

EASY SETUP: Each 4Banger kit offers an easy installation, with everything from the hardware to the adapter for your factory fog light harness included. No modifications are necessary - simply plug and play. Please note, this product requires a factory fog light installation to work properly.
FULLY ADJUSTABLE: Tuned for precision, Morimoto 4Banger LED Fog Lights for Toyota 4Runner (2014-2024) boast +/- 6 degrees of vertical adjustability. This provides the perfect wide beam pattern for use as a fog light while ensuring no light is unnecessarily directed into oncoming traffic. Power is maximized with utmost control.
AIR COOLED: Combining a sleek design with adjustable fitment, Morimoto 4Banger LED fog lights for Toyota 4Runner (2014-2024) have integrated ductwork to draw away heat from the heat sink, boosting lumen output and reducing heat-soak.

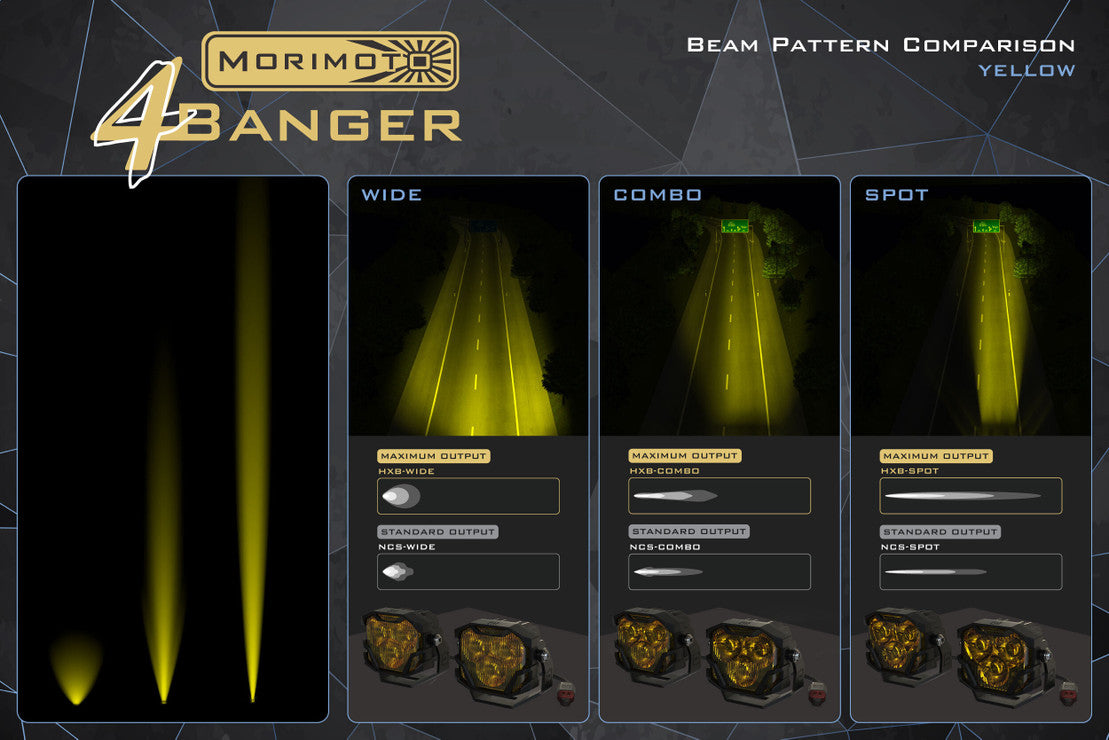

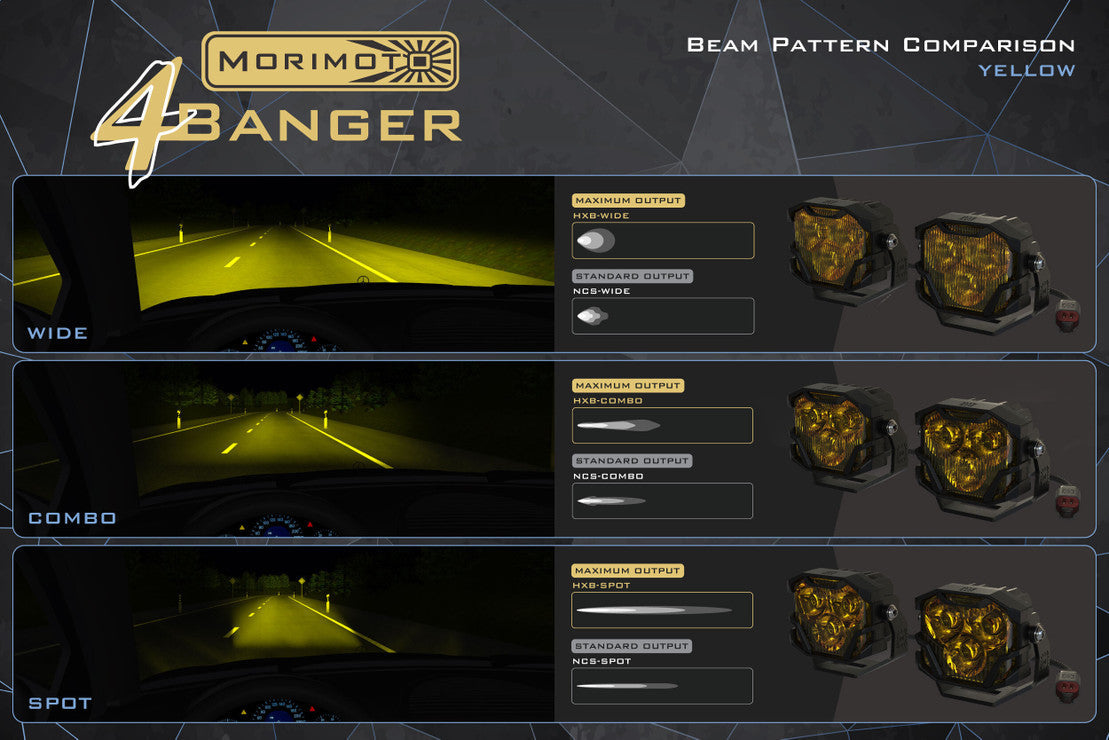

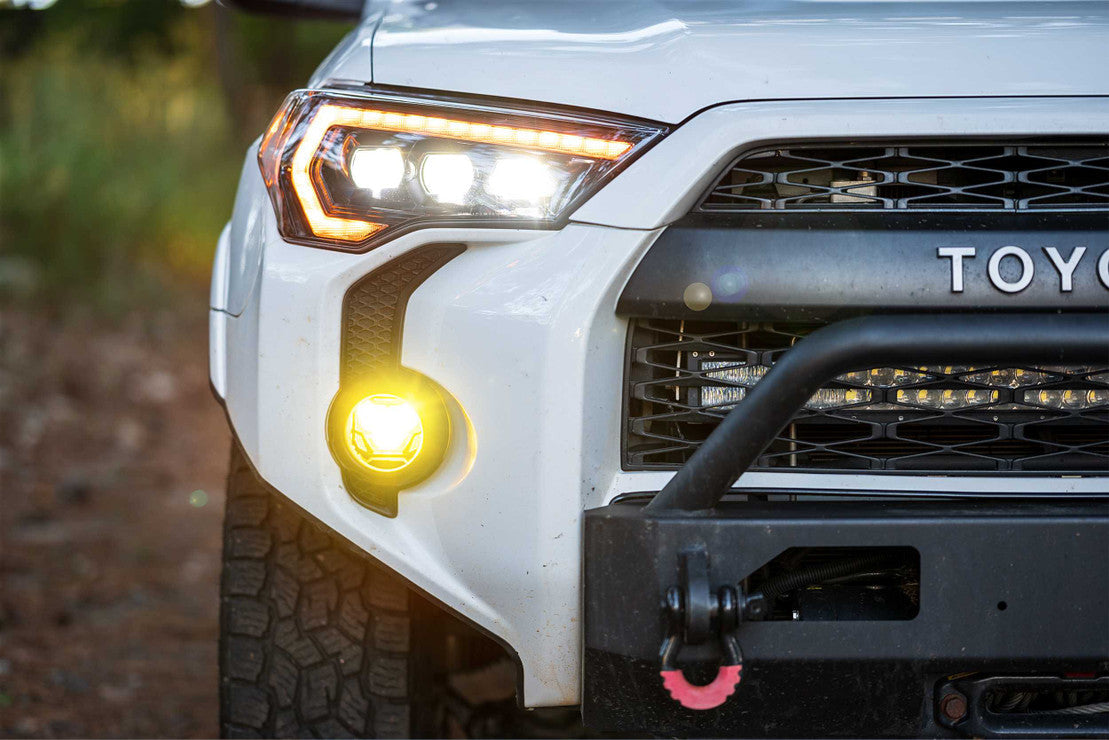

ALL WEATHER: Morimoto 4Banger LED Fog Lights: Toyota 4Runner (2014-2024) deliver superior all-around visibility in white-output mode, plus the specially-designed yellow-output version produces increased performance in less-than-ideal conditions such as snow, fog, and rain. HXB Spot and Combo models feature Phosphor-Converted Yellow LEDs, which generate yellow light at the source to ensure optimal penetration in severe weather, rather than using yellow lenses to filter white light, which does not improve performance.

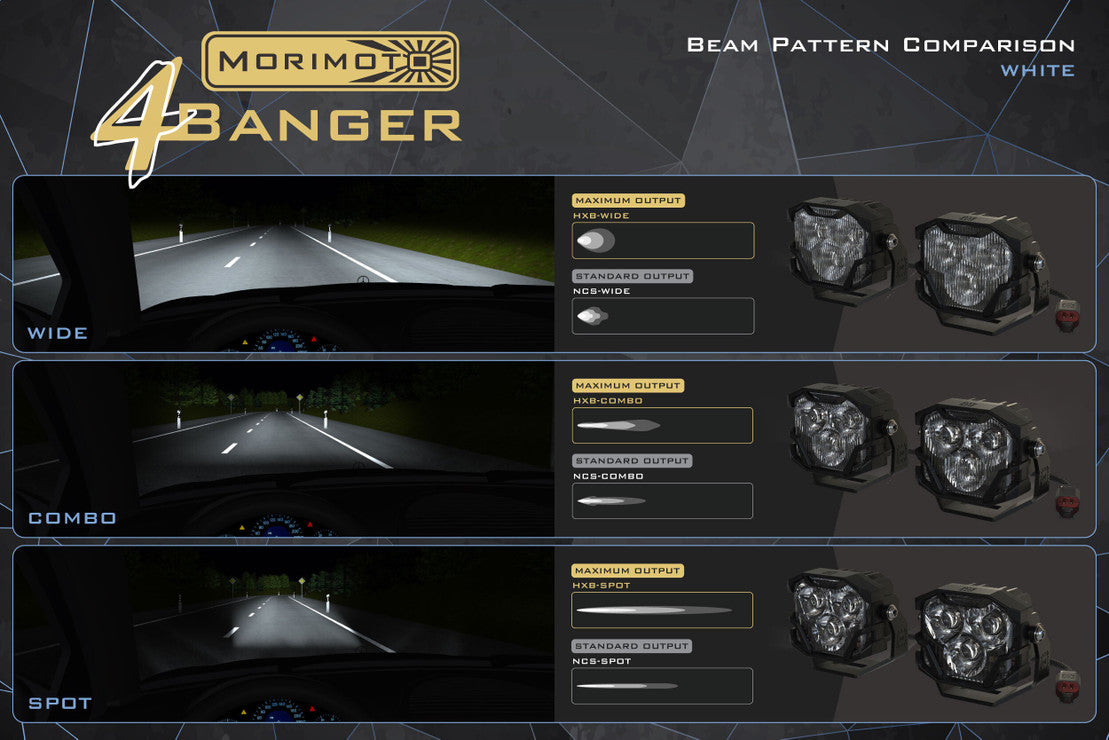

HXB WIDE BEAM: Delivering 80% more lumens than Rigid D-Series SAE Fog Lights, the Morimoto 4Banger LED Fog Lights offer an unprecedented combination of wide beam pattern, intense illumination, and photometrically verified SAE-Compliance. Backed by advanced Osram HX Boost LEDs, the 4Banger HXB is the brightest and most effective fog light for both on- and off-road conditions.
NCS WIDE BEAM: Morimoto 4Banger LED Fog Lights feature a super wide beam design backed with LEDs from Nichia. Extensive Calcoast ITL testing has verified that the superior vertical gradient control meets SAE F photometric standards for on-road use and provides an effective, glare-free fog light for ground level and oncoming traffic. The advanced NCS Wide beam is brighter than any comparable model, with 15.6W, 14% more output than the Rigid D-Series SAE's 21.5W.
BENCHMARK: Morimoto stands at the forefront of aftermarket automotive lighting. We are renowned globally for offering the superior combination of performance, quality, and aesthetic appeal. Our expansive selection of products boasts compatibility with the most commonly-owned cars and trucks. Not seeing what you are looking for? Trust us to design and create a custom-made option just for you. Look no further than Morimoto for all your automotive lighting needs!
INCLUDED

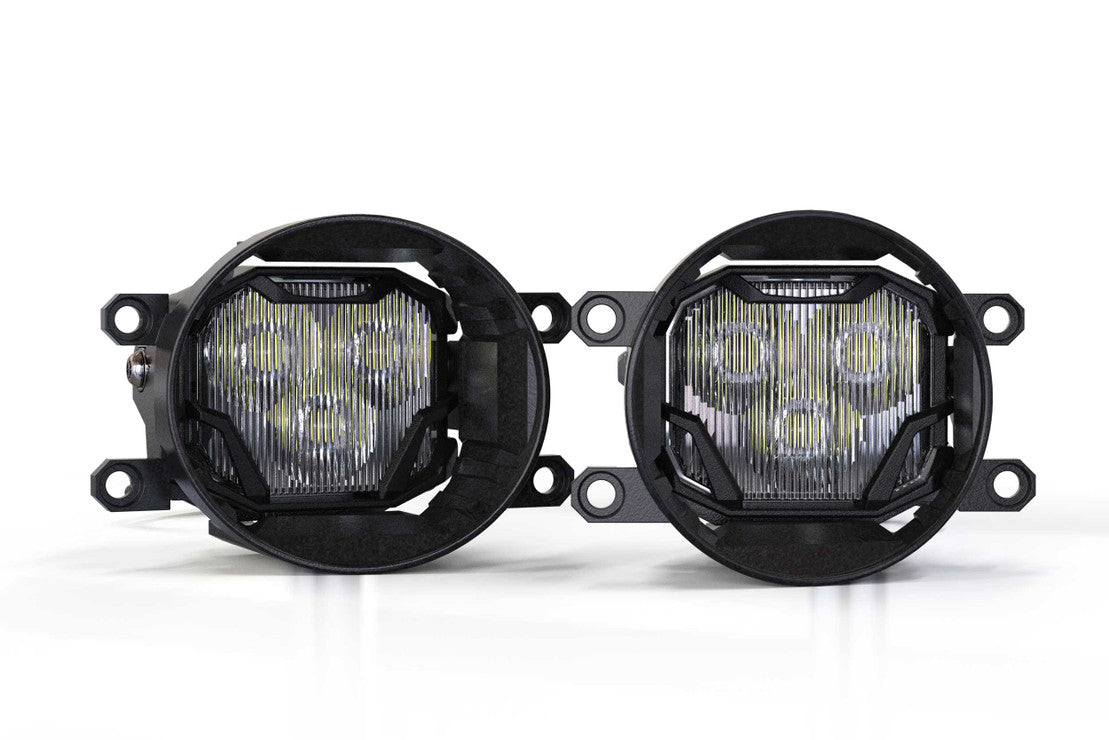

FOG LIGHT BRACKETS:
2x (One Pair) Morimoto 4Banger (BAF014 / Type T2 Style)
LED PODS:
2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
HARDWARE:
Complete Pack (Stainless Steel)
WIRING:
Plug N Play Connection Kit
WARRANTY:
Limited Lifetime
COMPATIBILITY
TOYOTA 4RUNNER:
2010-2024
TOYOTA AVALON:
2007-2015
TOYOTA CAMRY:
2007-2014
TOYOTA COROLLA:
2009-2016
TOYOTA HIGHLANDER:
2008-2010
TOYOTA MATRIX:
2009-2013
TOYOTA PRIUS:
2010-2016
TOYOTA PRIUS C:
2012-2016
TOYOTA PRIUS V:
2012-2016
TOYOTA RAV4:
2006-2012
TOYOTA SIENNA:
2010-2016
TOYOTA SOLARA:
2006-2008
TOYOTA TACOMA:
2012-2023
TOYOTA TUNDRA:
2014-2021
TOYOTA VENZA:
2009-2014
TOYOTA YARIS:
2007-2016
SUBARU LEGACY:
2015-2017
REPLACES TOYOTA PART #:
81220-06071, 81210-08020
NOTE:
There are two standards for Toyota fog lights with slightly different spacing between the mounting points. These will work with both, but may be a tight fit if your Toyota uses the "wider" spacing.
COMPLIANCE:
Wide beam photometrics are SAE F 20 compliant
TECH SPECS
INTENSITY:
NCS WIDE YELLOW:
8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS WIDE WHITE:
14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS COMBO YELLOW:
38,850 Cd (Post Warm-Up) (384lux @ 10m)
NCS COMBO WHITE:
55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS SPOT YELLOW:
73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS SPOT WHITE:
105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB WIDE YELLOW:
14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB WIDE WHITE:
22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB COMBO YELLOW:
54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB COMBO WHITE:
78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB SPOT YELLOW:
119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB SPOT WHITE:
170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
INPUT VOLTAGE:
9-18V DC
POWER:
15.6w (NCS) 42w (HXB)
CURRENT:
1.5A (NCS) or 3.2A (HXB)
DIMENSIONS:
82mm W, 67mm H, 60mm D
LIGHT SOURCE:

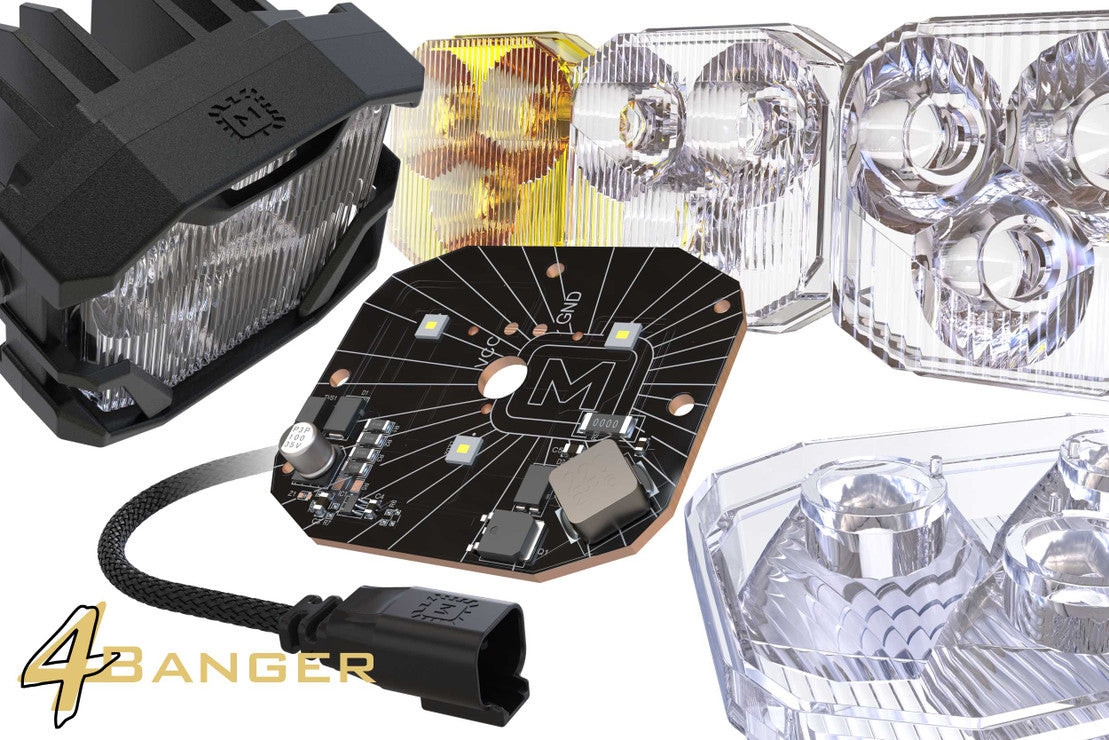

3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
INPUT:
Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
MATERIAL:
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP RATING:
IP69K (Dust / High Pressure Water Resistant)

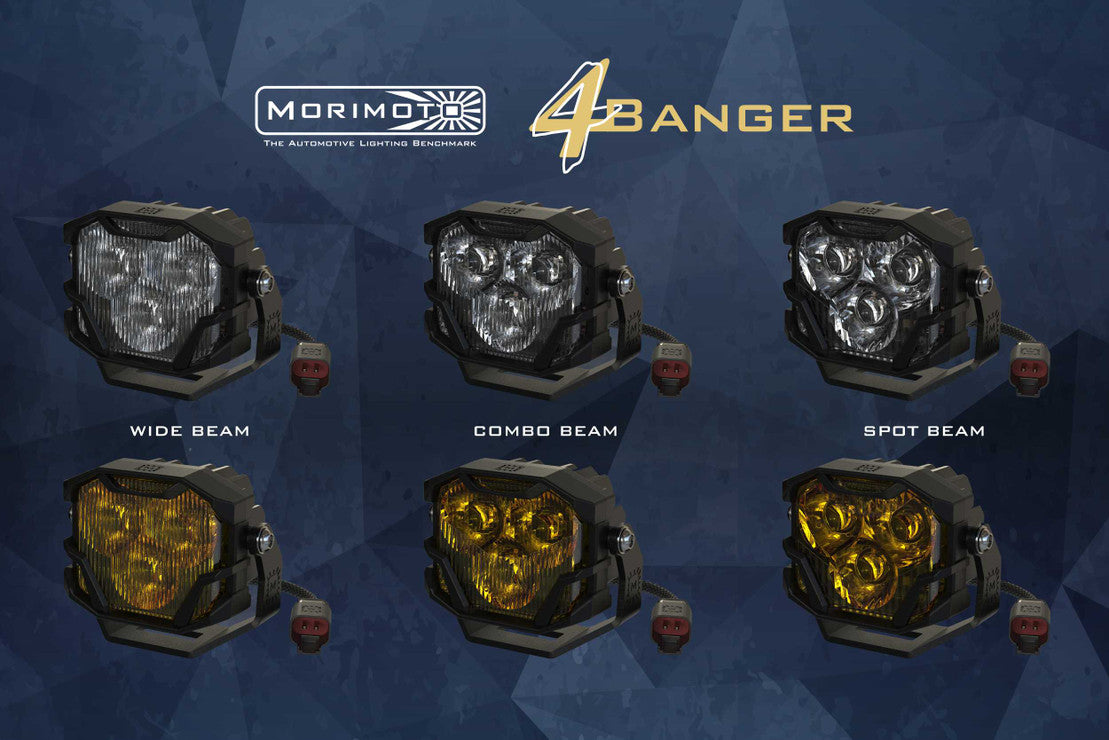

- PODS (MODEL/BEAM/COLOR):
- SAE Wide / White
