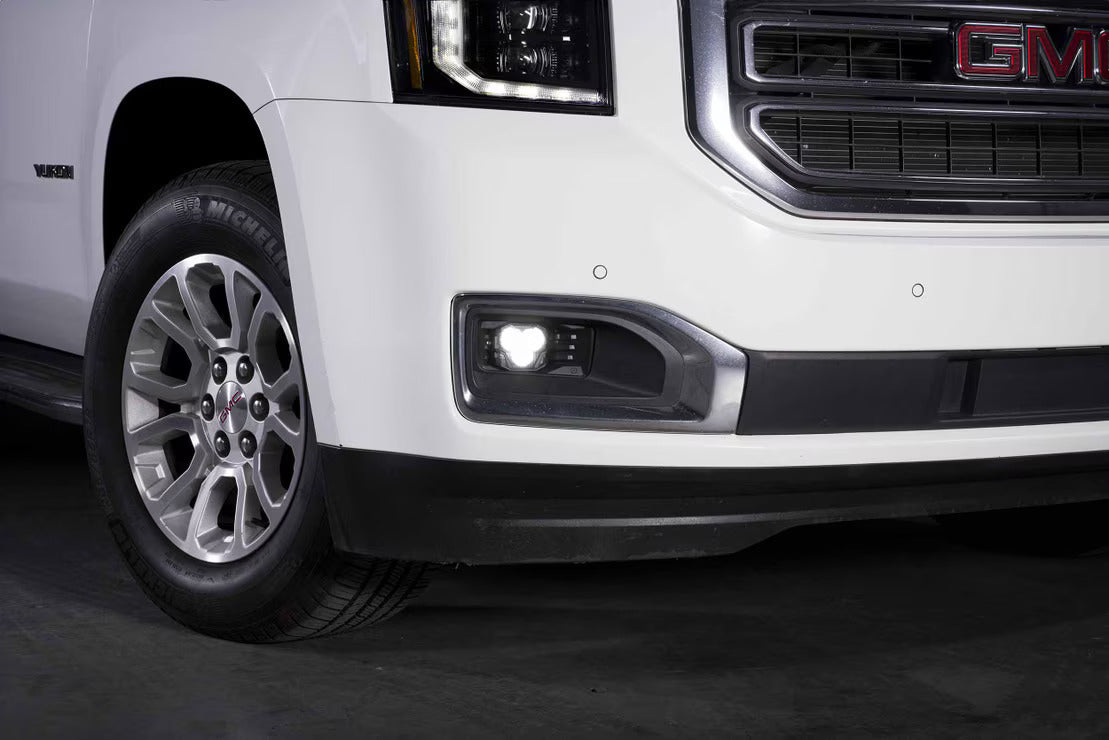

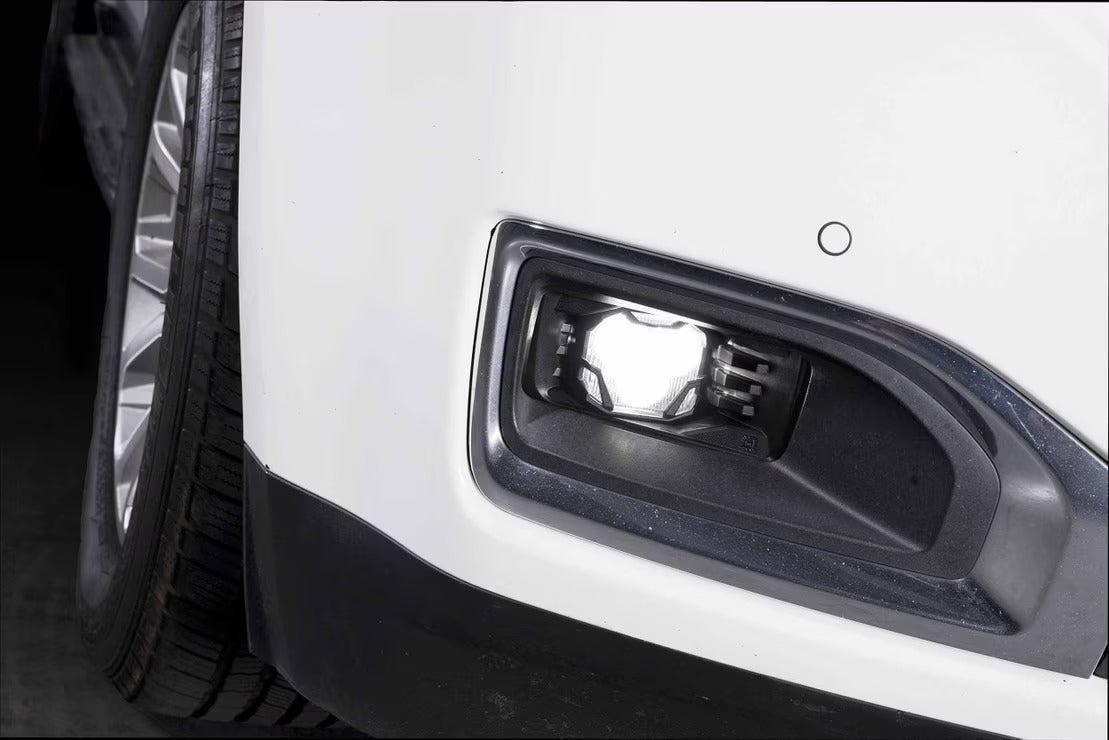

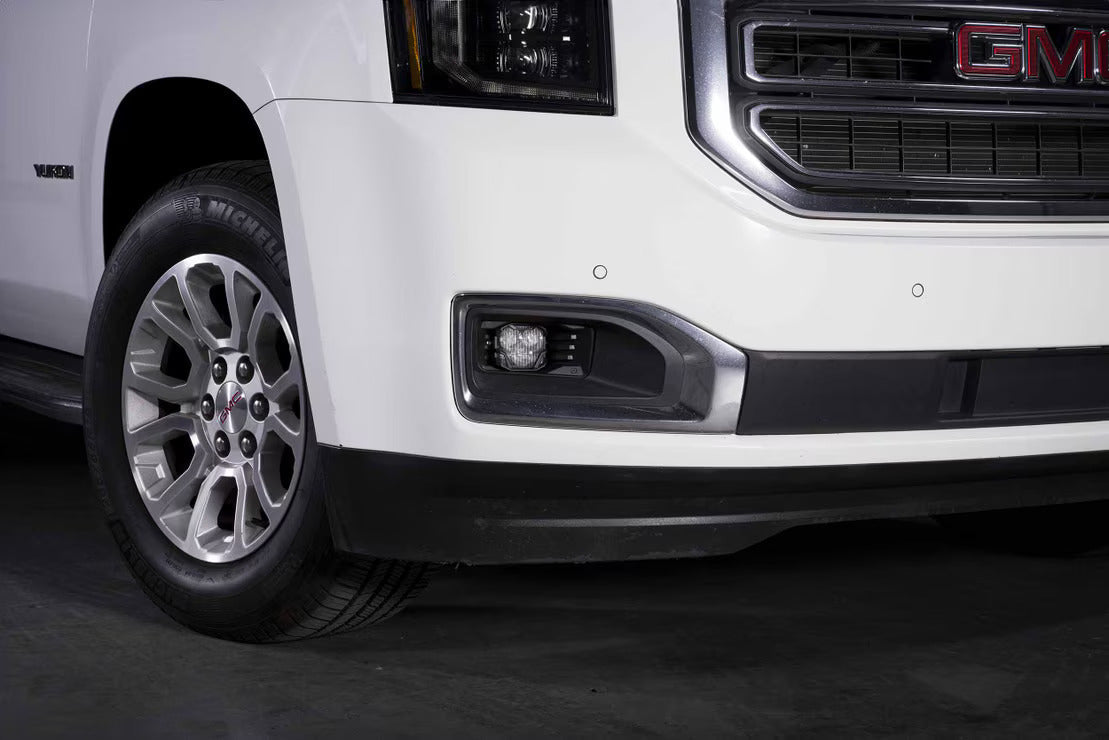

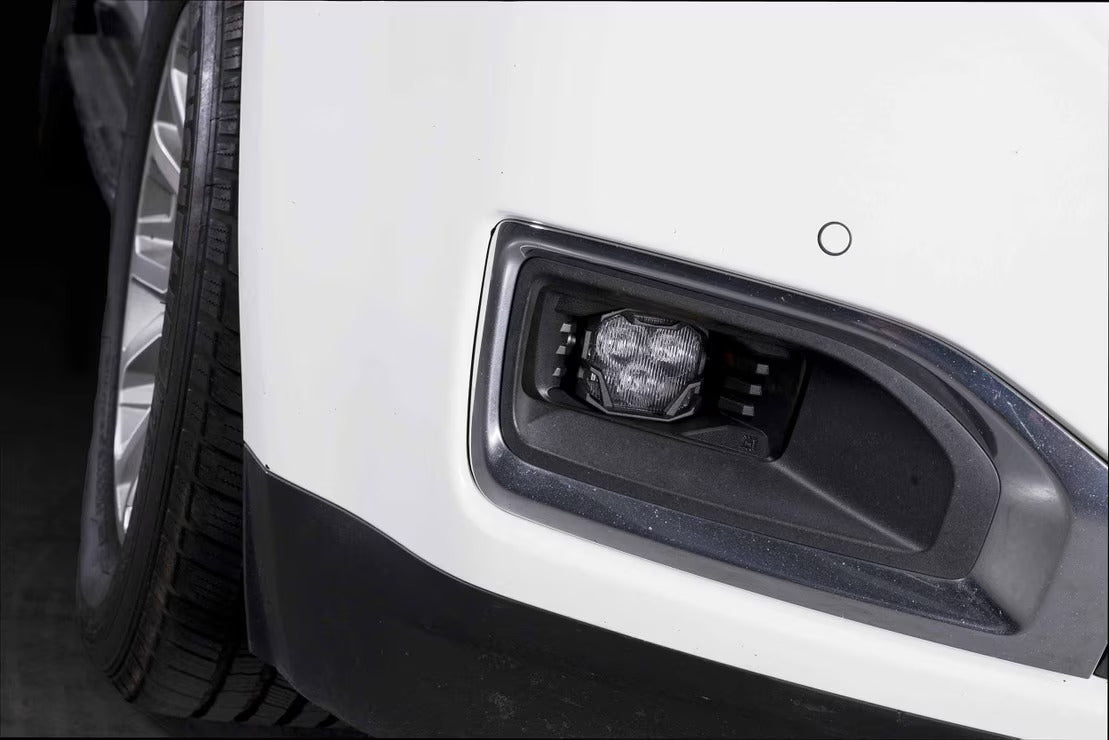

Morimoto 4Banger LED Fog Lights: Chevrolet Suburban (07-14)

Vendor:OffRoadUSA.com

Morimoto 4Banger LED Fog Lights: Chevrolet Suburban (07-14)

$75.00 USD

Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right on your GM truck. Other adapter kits for more traditionally sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the fog light brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a GM owner could ask for. Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger pods in your fogs. Choose between white or yellow output and two tiers of intensity, and your nighttime drive will be transformed!

FEATURES & BENEFITS

Powerful Illumination: Morimoto 4Banger pods offer industry-leading brightness.
SAE Compliance: Compliant with the latest SAE F regulations for a street legal fog light.
Easy Install: Bolt-on, plug-n-play setup with the included brackets and stainless hardware.
Fully Adjustable: Dial in the aim, whether your suspension’s stock, lifted, or lowered.
All-Weather Performance: White or yellow output for visibility in any condition.

WHAT’S INCLUDED

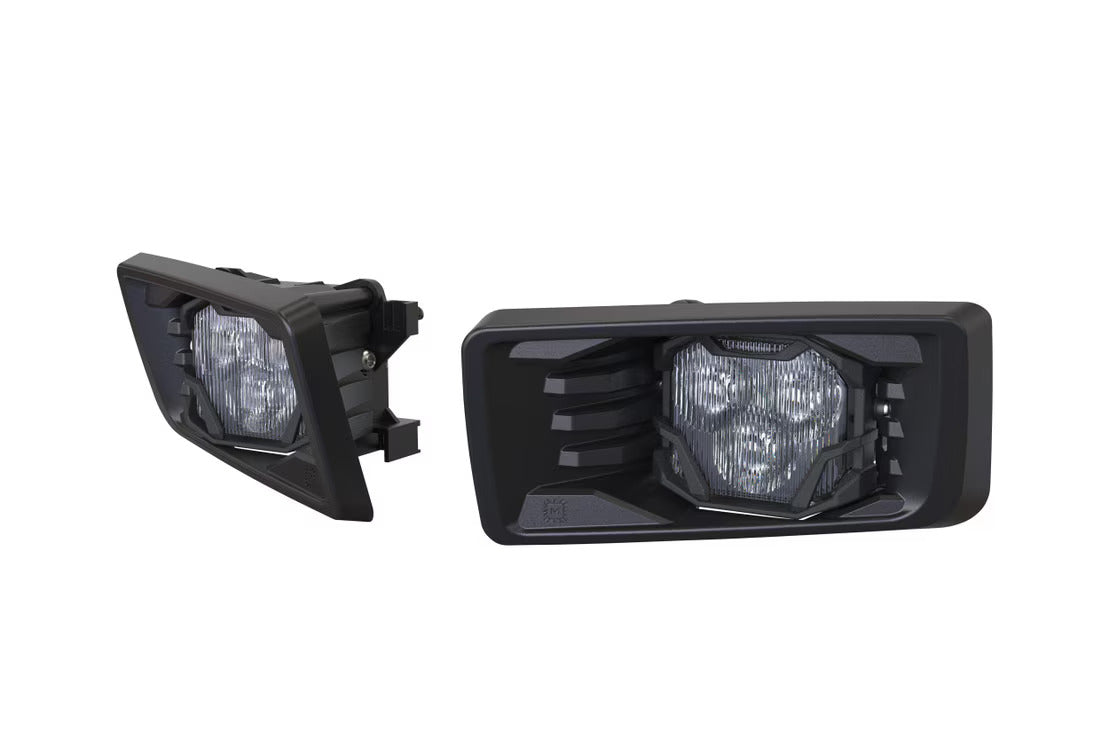

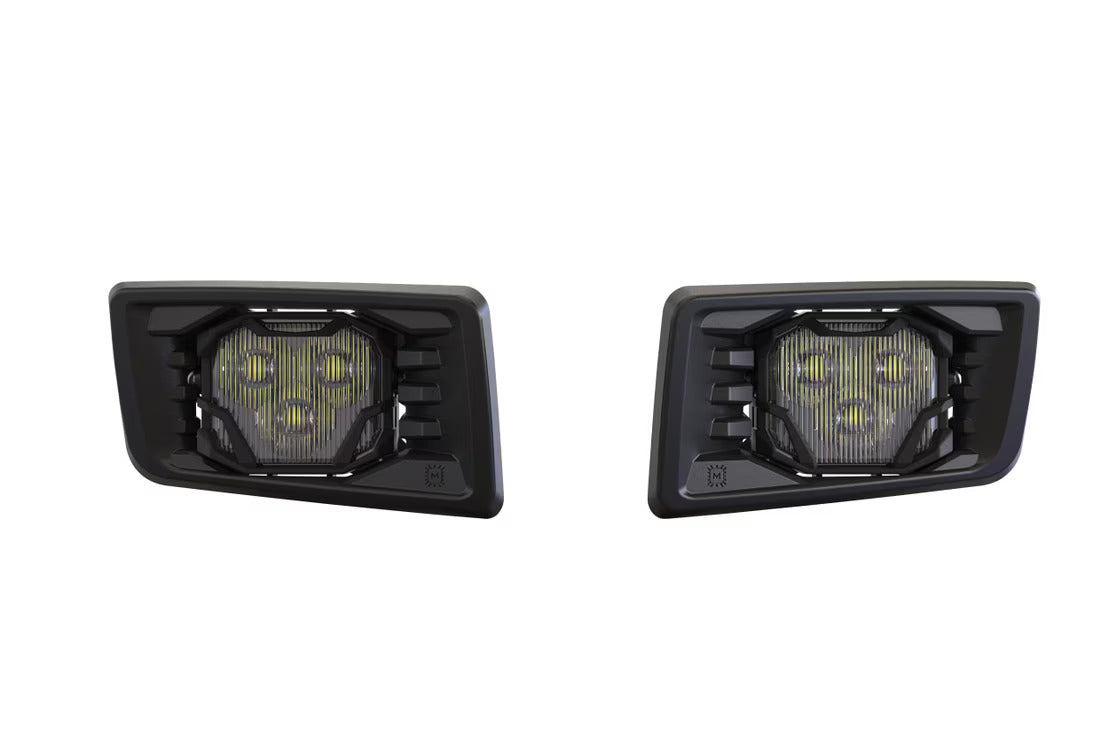

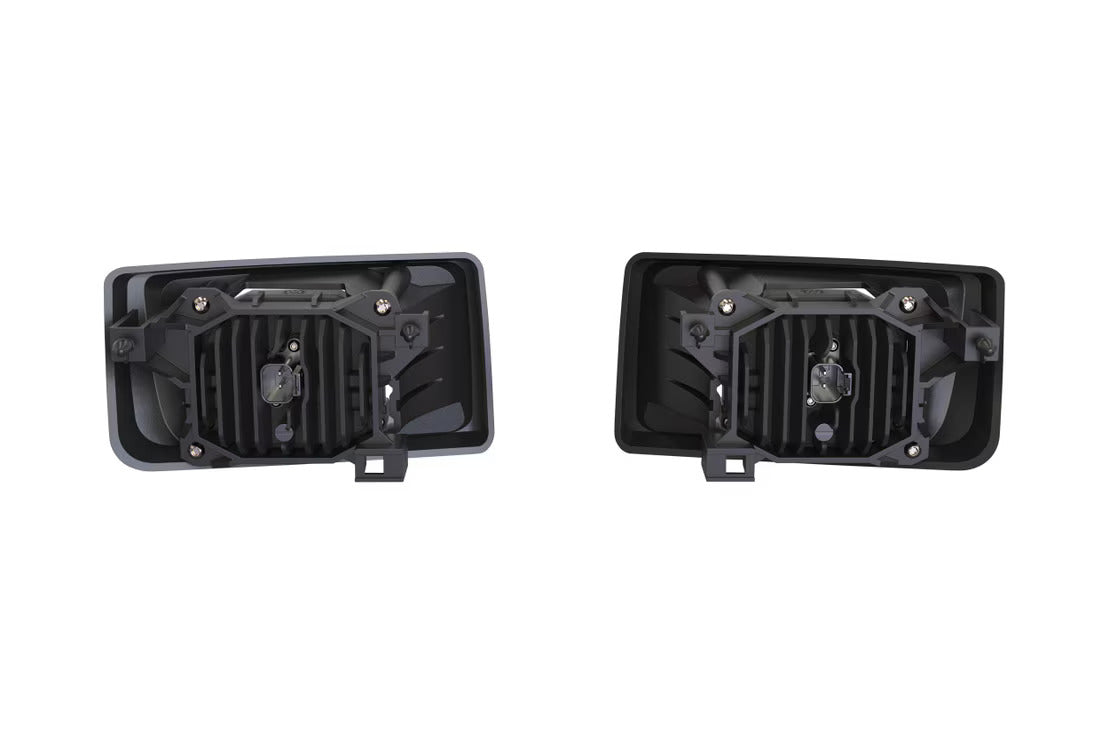

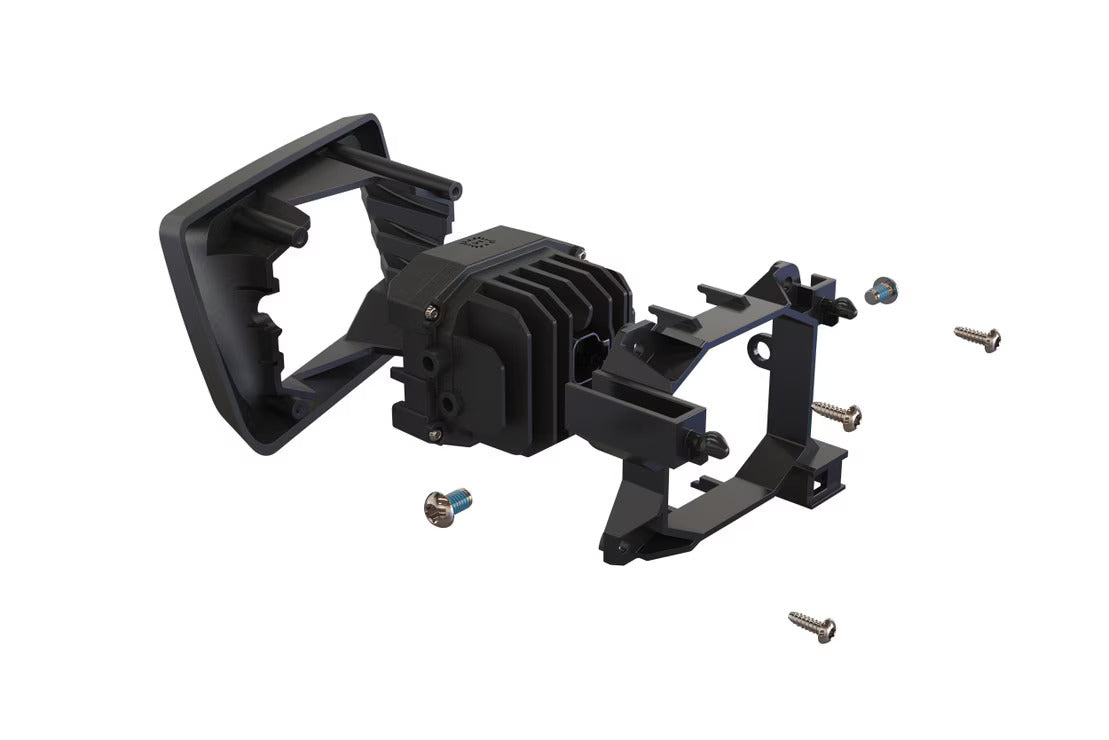

Fog Light Brackets: 2x Front Bezels, 2x Pod Brackets
Optional LED Pods: 2x Morimoto 4Banger (Optional Color / Model)
Wiring: 2x 5202 to Deutsch DT Adapters
Hardware: Complete Pack (Stainless Steel)
Warranty: Lifetime Limited

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.

COMPATIBILITY

Chevrolet Suburban 1500: 2007-2014*
Chevrolet Suburban HD: 2007-2015*

LED Pods: Morimoto 4Banger Only
*Note: Your truck must have square-shaped fog lights.
Replaces GM Part #: 25883245, 25883246

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant

TECHNICAL SPECIFICATIONS

Note: These specifications are per pod / each!
Intensity:

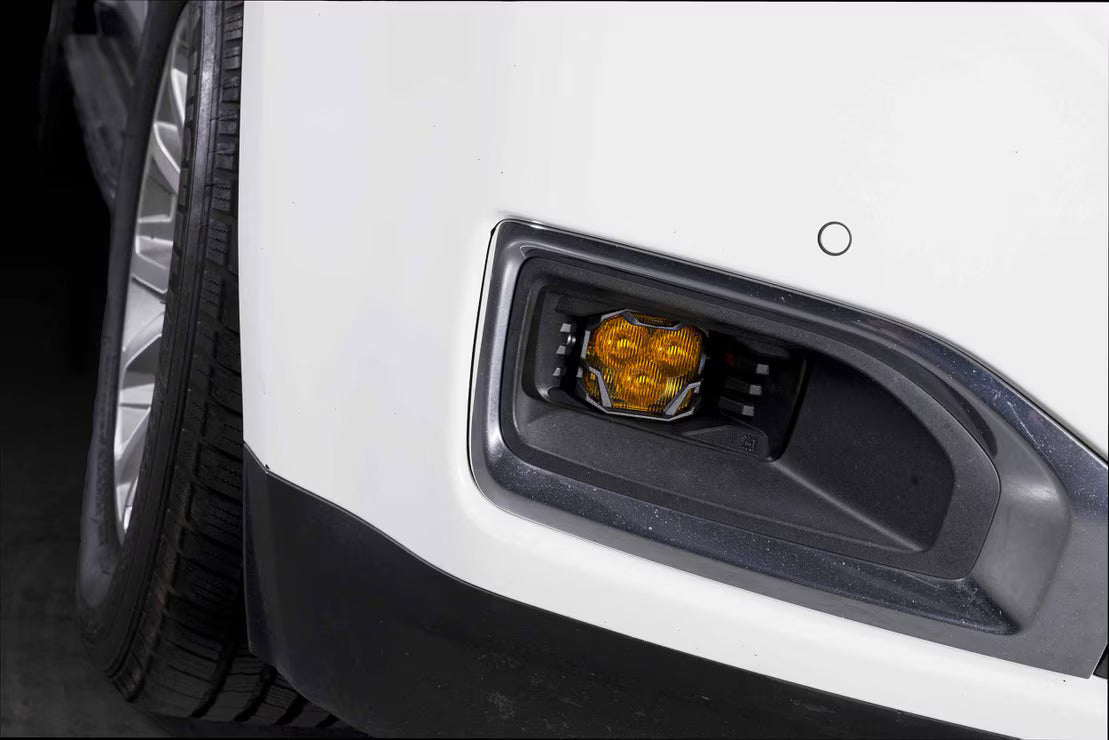

NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
Input Voltage: 9-18V DC
Power (stabilized): 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Integrated Deutsch DT 2-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Choose Pods (Model and Color): None (Brackets Only)

None (Brackets Only)None (Brackets Only)
2.0 NCS LED Pods (SAE Wide / White)2.0 NCS LED Pods (SAE Wide / White)
2.0 NCS LED Pods (SAE Wide / Yellow)2.0 NCS LED Pods (SAE Wide / Yellow)
2.0 HXB LED Pods (SAE Wide / White)2.0 HXB LED Pods (SAE Wide / White)
2.0 HXB LED Pods (SAE Wide / Yellow)2.0 HXB LED Pods (SAE Wide / Yellow)
