06-07 S465 5.9L SINGLE SWAP TURBO & PIPING KIT

🔥 2nd Gen Style S465 Turbo Kit – For 2006–2007 Dodge Cummins (5.9L) | Stainless Diesel High-Flow System

Unleash the full potential of your 2006–2007 5.9L Cummins with Stainless Diesel’s 2nd Gen Style S465 Turbo Piping Kit. This complete kit positions your turbo in the proven “twin location” for faster spool, better drive pressure, and lower EGTs—while giving you the strength and future upgradeability Stainless Diesel kits are known for.

Built with CNC-machined flanges and aluminized mild steel tubing, this system handles high-boost abuse far better than plastic or rubber-based kits. And with the legendary BorgWarner S465 (cast box unit, part number 169012), you get a turbo that’s widely respected for reliability and consistent performance.

—

🌀 Turbo Specs – BorgWarner S465/83 Cast Turbocharger:

• Compressor: Cast 65mm inducer

• Turbine: 83mm

• Frame: BorgWarner S400-based (169012 platform)

• Exhaust Housing Options:
  • 0.90 A/R – Fast spool (not recommended over 600 HP)
  • 1.00 A/R – Best for hot street trucks/daily driving
  • 1.10 A/R – Ideal for top-end power & towing

• Turbo Style: T4 divided inlet, v-band outlet

⚠️ Warning: Use of a 0.90 A/R turbine housing with an S465 may lead to over-speed and premature turbo failure. Use at your own risk.

—

🔧 What’s Included:

• BorgWarner S465/83 Box Turbocharger (choice of A/R size)

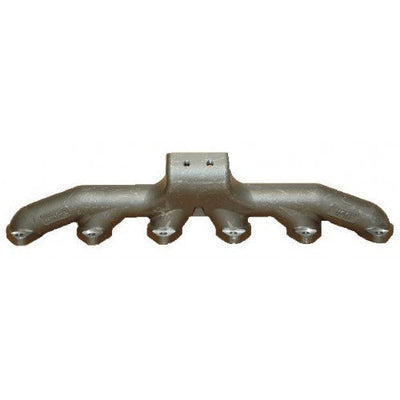

• Optional Stainless Diesel T4 2nd Gen Style Exhaust Manifold

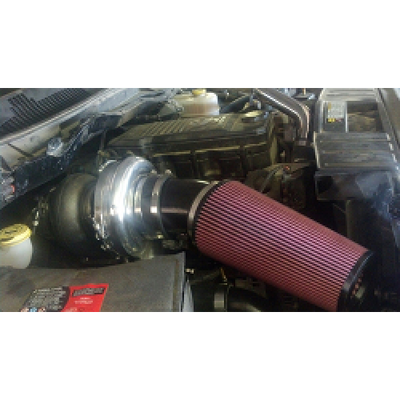

• Stainless Diesel Custom Flow Boss Cold Air Kit w/ S&B Filter & Pre-Filter

• Turbo Blanket

• -6 Braided Stainless Steel Oil Supply Line + Fittings

• Oil Drain Line + Gasket

• Turbo Gaskets & Manifold Gaskets

• Turbo Mounting Studs & Bolts

• High Torque T-Bolt Clamps

• V-Band Clamp for Turbo Discharge

• 3.00" Bead-Rolled Intercooler Pipe

• S400 Aluminum 90° Elbow w/ O-ring & V-Band Clamp

• 5.00" Air Cleaner Pipe w/ AIT Sensor Bung

• 5.50" to 5.00" Silicone Transition Boot w/ Clamps

• 4.00" Aluminized Steel Downpipe

• 1.00" Billet Divided Spacer

—

🛠 Fitment:

• Fits: 2006–2007 Dodge Ram 2500/3500 w/ 5.9L Cummins

• Requires: 2nd Gen-style T4 manifold (available as option)

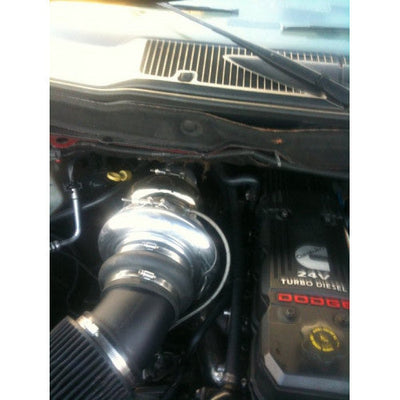

• Turbo is positioned in twin configuration for improved airflow and drivability

• 1–2 week build time (built to order)

—

💬 Why Choose This Kit?

• Built with durable materials—no rubber boost tubes or plastic charge piping

• Cast BorgWarner S465 offers dependable performance & proven tuning support

• Pre-configured layout makes future compound/twin upgrade easier

• Includes all hardware, clamps, and fittings for a clean, bolt-on install

—

Ready to step up your 5.9L Cummins build with proven performance? This 2nd Gen style S465 kit is your perfect mix of power, spool, and reliability.
