Spool Helix HPFP Overdrive Unit
Spool Performance is thrilled to introduce our latest innovation for the N54/early N55 community: the Helix Overdrive Unit. After nearly a year of rigorous testing, we are proud to present this game-changing product that unlocks new levels of performance for your high-pressure fuel system.
What is the Helix?

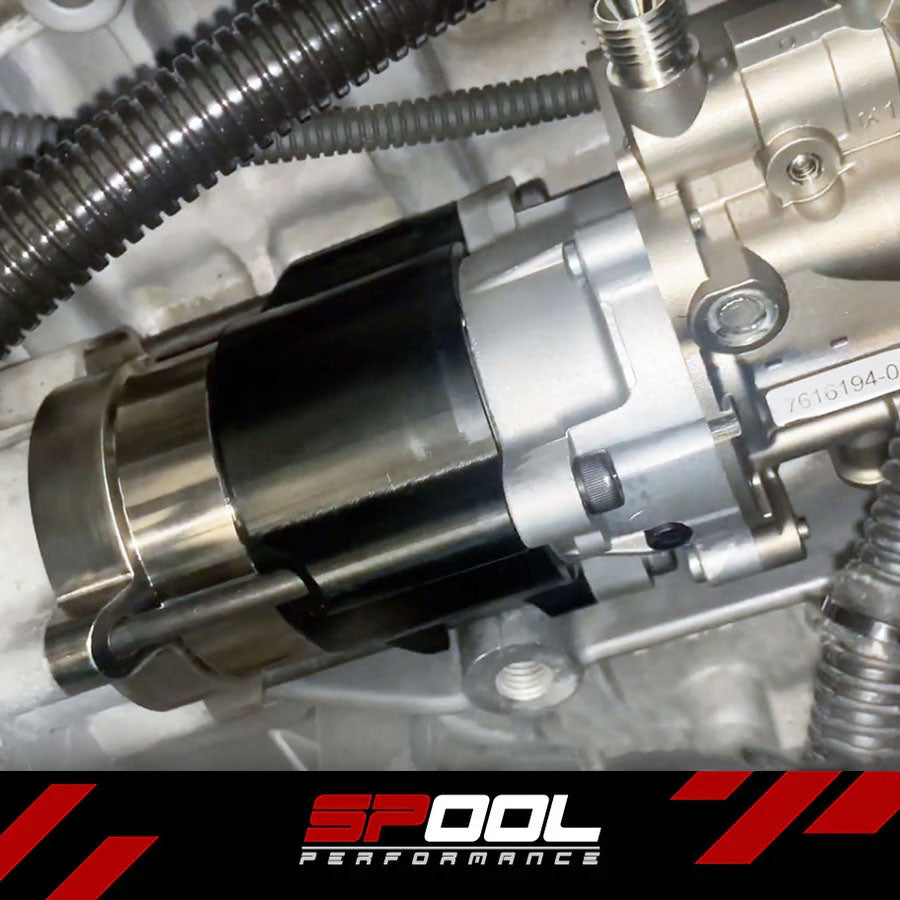

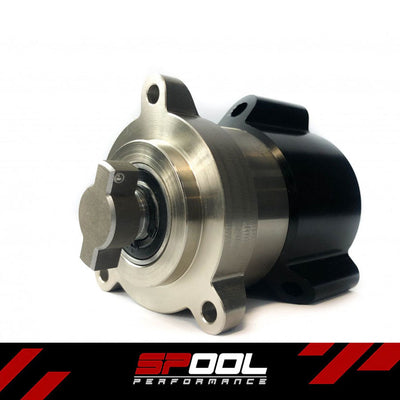

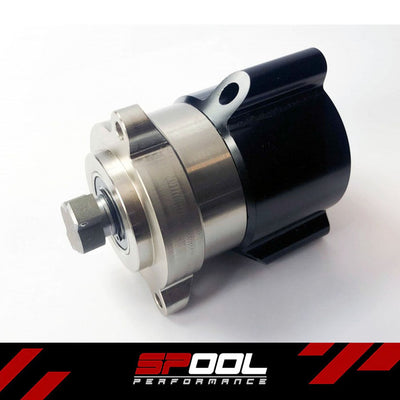

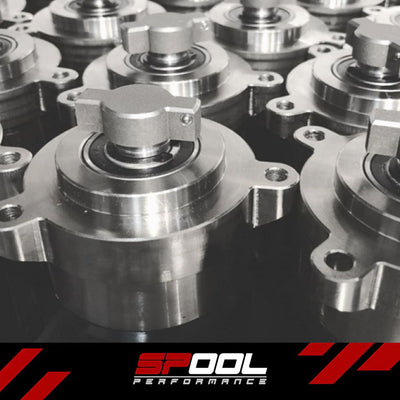

The Helix is a planetary gearbox designed specifically for your high-pressure fuel pump (HPFP). Similar to the technology found in automatic transmissions, it leverages a planetary gear system—composed of a ring gear, planet gears, and a sun gear—to increase the shaft speed in an axial configuration. This innovative setup allows the HPFP to rotate faster, increasing the number of delivery strokes per cycle, and significantly enhancing its fuel delivery capability.
Why You Need the Helix
The N54/early N55 HPFP is a robust, over-engineered component capable of supporting stock power levels. However, when tuning for higher power, many encounter drops in high-pressure fuel delivery. This occurs because the HPFP cannot pump fuel as quickly as the injectors consume it, causing rail pressure to drop.
By spinning the pump faster, the Helix Overdrive Unit increases displacement volume without the added complexity of secondary port injection systems. This provides a straightforward, efficient solution to one of the most significant limitations in N54/early N55 fuel systems.
Fueling Limits with the Helix
We offer two versions of the Helix to accommodate different performance needs:
-
Helix:
- Supports up to 600whp on full E85
- Supports 750+whp on E60 mixes
-
Helix Xtreme:
- Supports up to 750whp on full E85
- Supports 850+whp on E60 mixes or gasoline blends
The Helix is ready for immediate launch, while the Helix Xtreme is in the final stages of longevity testing.
Addressing HPFP Longevity Concerns
The Continental HPFP has been subject to failures and recalls, so we prioritized a deep analysis of failure modes during testing. Here’s what we discovered:
-
Common Failure Modes:
- Inlet Metering Valve Actuation Failure: Caused by solenoid coil issues.
- Limp Home Mode Bypass Valve Leaks: Prolonged E85 use can degrade the rubber elements, causing leaks that prevent the HPFP from maintaining rail pressure.
-
Durability of Critical Components:
- Physical examinations of high-mileage units showed minimal wear on key components, such as the squash plate, springs, and pistons.
- Oil analysis revealed negligible metal content, indicating the components are built to last and not adversely affected by overdriving the pump.
Overall, our testing confirms that overdriving the HPFP with the Helix does not exacerbate these failure modes.
Tune Adjustments
To maximize the potential of the Helix system, tune changes are required. Spool Performance works with all major tuners and will provide the necessary calibration adjustments upon request.
Included in Your Purchase
Every Helix purchase includes:

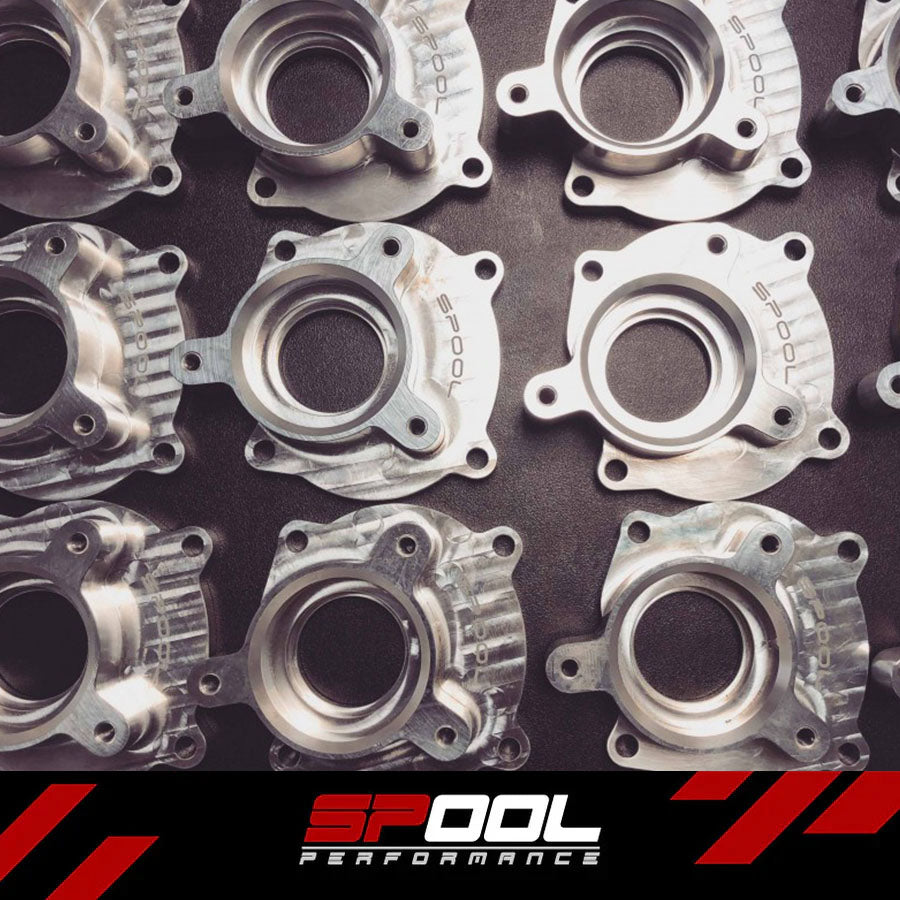

- Billet Vacuum Cover Mounting Plate

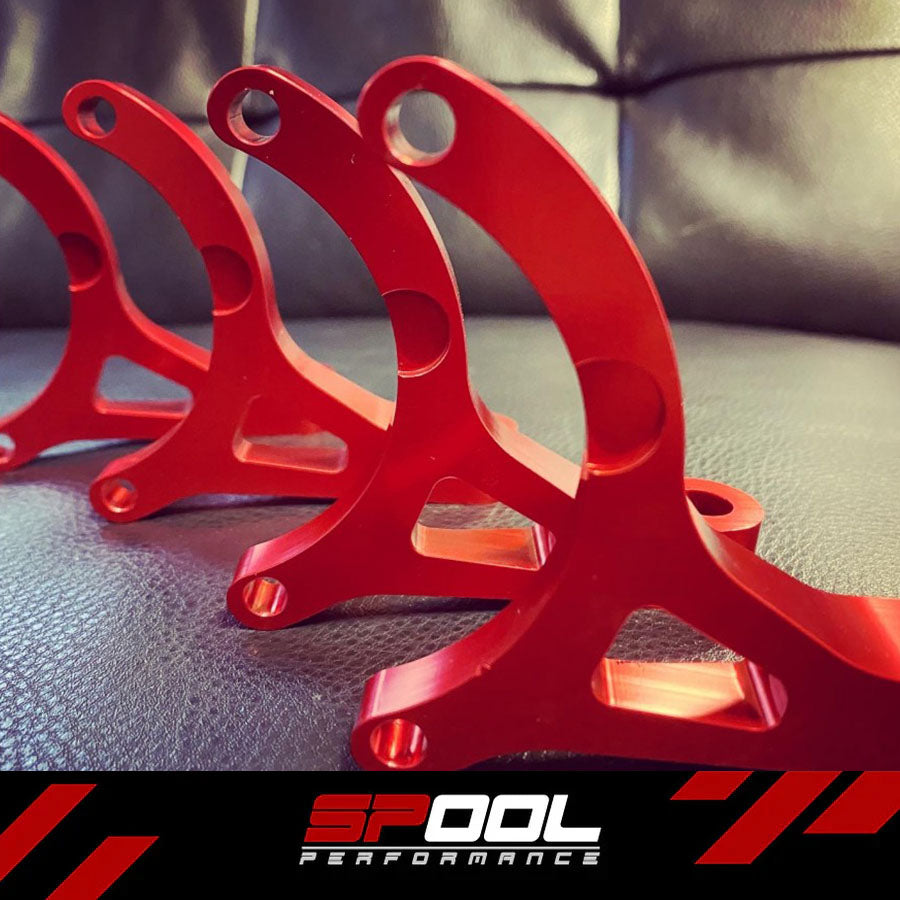

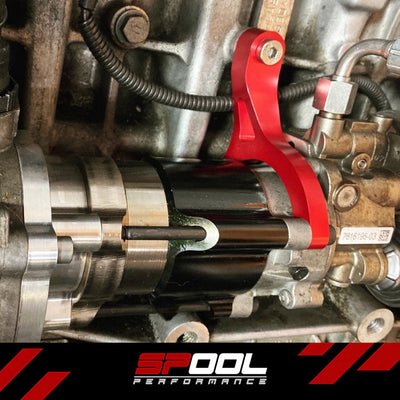

- Support Bracket
- All Necessary Installation Hardware
