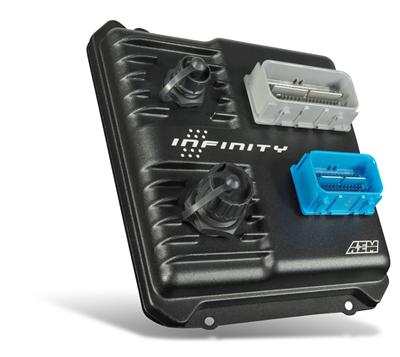

AEM Infinity-8 708 Standalone Programmable EMS without harness 30-7101
We have been working with this engine management system since before it was released to the public. We are very familiar with it and can answer your tech questions with experience, without passing you off to the manufacturer or guessing. We know the ecu because we use it. Buy from someone you trust, that will provide you with support after the sale. Please let us know if you have any questions.
Note: This is for the ECU only. The required ecu harness is sold separately.
SELECTING THE RIGHT INFINITY ECU
Infinity ECU modules are designed for maximum flexibility across many types of applications. ECU modules and harnesses are sold separately for both Supported and Plug & Play applications…
INFINITY-8 EMS TECHNICAL SPECS:
- 8 peak and hold injector drivers
- 8 (0-5V) ignition outputs
- 3 analog temp inputs (Additional 3 with Advanced Tuning Package)
- 11 analog voltage inputs (Additional 6 with Advanced Tuning Package)
- 7 digital inputs (Additional 1 with Advanced Tuning Package)
- 4 VR/Mag differential pair inputs (Additional 2 with Advanced Tuning Package)
- 12 configurable outputs (Additional 1 with Advanced Tuning Package)
- Variable cam control (up to 4 cams, application dependent)
- Dual internal wideband controllers
- 2 H-Bridge drivers for drive-by wire (Application dependent. Requires Advanced Tuning Package)
- 32 Bit, 200MHz 400 MIPS primary microprocessor
- 20 MHz auxiliary microprocessor
- 6” L x 6” W x 2” H (1.125” H w/o connectors)
- 24 Ounces/680.4 Grams
- 129 pin, fully-sealed ECU enclosure and IP67 spec connectors
INFINITY EMS FEATURES:
- Compatible with most factory and performance aftermarket sensors
- Includes start up configurations (supported applications only)
- Fuel control resolution to 1/10th of a microsecond (.0000001 sec)
- ECU set up wizard
- USB 2.0 High-Speed communications
- High-speed USB data logging to mass storage device (4GB included, tested to 64GB)
- Internal data logging playback mode on every channel, synchronized with all controls
- Tune using USB communication port (optional weatherproof extension cable sold separately)
- 2-Channel CAN included
- User interface features 3D graphics
- Internal simulator
- AEMdata data analysis software included
- Runs on Windows-compatible software
INFINITY EMS CAPABILITIES:
- Airflow model based calculations
- VE-based engine startup
- Multi-fuel capable
- Flex fuel compensated – fuel, ignition and boost with blend
- Multiple boost control strategies (time, gear, vehicle speed, switch and more)
- Drive by wire (with Advanced Tuning Package)
- 2-step programmable launch control (3-step with Advanced Tuning Package)
- Programmable traction control, 2-wheel speed or engine acceleration (4-wheel speed with Advanced Tuning Package)
- No-lift shift (Requires Advanced Tuning Package)
- User configurable soft-cut rev limiters
- User configurable anti-lag
- Map switching (4 Separate ignition maps, 4 separate Lambda target maps, 2 separate VE tables)
- Single stage wet or dry nitrous control (4-stage with Advanced Tuning Package, coming soon)
- Integrated engine protection strategies
- Target Lambda table, 10x10
- Open-loop fuel pressure compensation
- O2 lean-out protection
- 2-channel adaptive knock control
- Configurable coil dwell (RPM, voltage and load based)
- Individual cylinder ignition trim (RPM based)
- Individual cylinder fuel trim (RPM based)
- 3D ignition trim maps (coolant and air temp)
- Specifications
