03-07 5BLADE S475 5.9 SINGLE SWAP COMPLETE KIT

🔥 5 Blade Mafia Premium S475/87 Turbo Kit – Complete 2nd Gen Swap System for 24V Cummins (T4) | All Upgrades Included

Ready to step into elite territory? The 5 Blade Mafia S475/87 Premium Kit is our fully loaded, competition-capable single turbo system for high-performance 24V Cummins builds. Featuring the billet 5 Blade S475/87mm turbocharger, Stainless Diesel’s legendary T4 24V manifold (with lifetime guarantee), and a heavy-duty 2nd Gen-style piping kit—this package is everything you need to dominate the street or strip with reliability and style.

This is the all-in, no-corners-cut setup built for power, durability, and true 5 Blade Mafia performance.

—

🌀 Turbo Specs – 5 Blade Mafia Billet S475/87:

• Compressor: 75mm billet 5 Blade inducer with extended tip technology

• Turbine Wheel: 87mm exducer – high-flow for top-end horsepower

• Race Cover: 0.71 A/R high-flow compressor housing

• Turbo Frame: S400, T4 divided inlet, v-band outlet

• Built to support high-boost, high-HP daily drivers and race builds

—

🛠 Complete Kit Includes:

• 5 Blade Mafia Billet S475/87 T4 Turbocharger

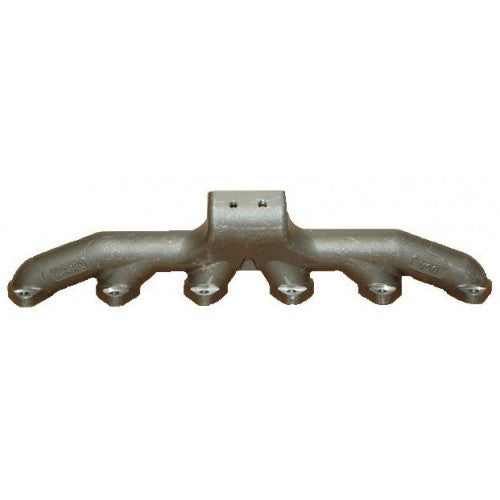

• Stainless Diesel T4 24V Manifold – Made in the USA with lifetime warranty
  – Includes 2 EGT probe ports and mounting hardware

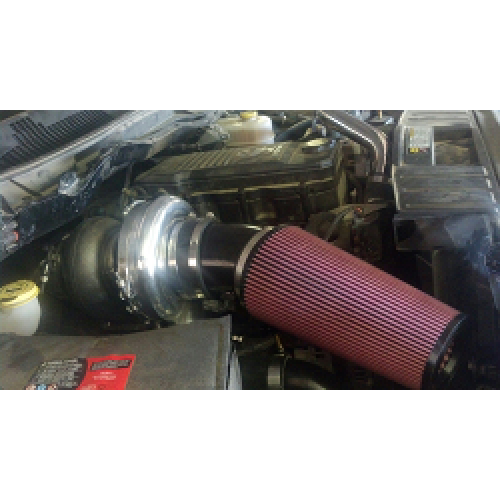

• High-Flow Cold Air Intake Kit (Flow Boss)
  – S&B Filter with PowerCone tip for max airflow
  – Prefilter Wrap (Choose Your Color)

• -6 Braided Stainless Oil Feed Line + Fittings

• Oil Drain Line, Gasket, and Press-In Fitting

• Turbo Gaskets & Manifold Gaskets

• Turbo Mounting Studs

• 3.00" Bead-Rolled Intercooler Pipe + Silicone Boots

• 5.00" Air Cleaner Pipe w/ AIT Sensor Bung

• 5.50" to 5.00" Silicone Transition Boot w/ T-Bolt Clamps

• 4.00" Aluminized Steel Downpipe

• S400 Aluminum Elbow, O-Ring & V-Band Clamp

• 1.00" Billet Divided Spacer

• Stainless Diesel Turbo Blanket (All Years Included)

• Waterline (for 2003–2005 models)

• Full Installation Packet with Step-by-Step Photos

—

⚙️ Fitment:

• Fits: 1998.5–2007.5 Dodge Cummins 24V (5.9L)

• Works with 2nd Gen-style T4 manifold orientation (manifold included)

• Twin turbo–ready layout with inverted manifold for faster spool and future upgrade potential

• 1–2 week build time (made to order)

—

💥 Why This Kit?

• S475/87 5 Blade delivers big airflow with fast-spooling street manners

• Built to handle big power, big boost, and real-world abuse

• Includes every premium upgrade—no extra add-ons needed

• Stainless Diesel quality with USA-built strength

• Join the 5 Blade Mafia and represent serious performance

—

Whether you’re building a hot daily, weekend warrior, or race-ready rig—this complete turbo kit brings the boost, flow, and finish to get the job done.
